position: 首页 > prodcut > Carbon Arc Gouging Machine

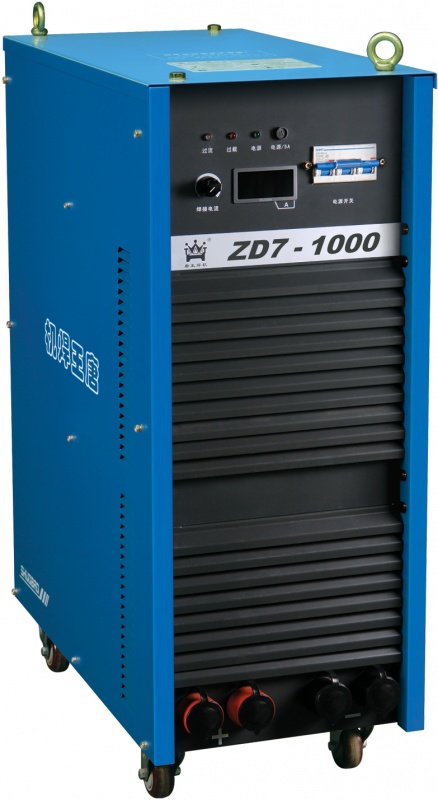

Carbon Arc Gouging Machine
|
|
product name: ZD7-1000
|
|
Product Model:
■ Suitable for MMA / Carbon Arc Gouging. ■ Powerful pulse function, the excellent molding of weld joint. ■ Suitable for the different welding processes thanks to voltage compensation functionality. ■ Protection function: over-current, over-voltage or under-voltage, phase error, overload, etc. |
| ZD7-630/1000/1250 | |||
| Inverter Carbon Arc Gouging Machines | |||
| Technical Data | |||
| Model | ZD7-630 | ZD7-1000 | ZD7-1250 |
| Input power source | 3Φ380V±10% 50Hz | ||
| Rated supply current(A) | 53 | 80 | 100 |
| Rated input capacity（KVA） | 34.9 | 52 | 65 |
| Rated no-load voltage(V) | 71.5 | 78 | 80 |
| Output current range(A) | 100-630 | 20-1000 | 250-1250 |
| Rated output voltage(V) | 44 | 44 | 44 |
| Rated output current (A) | 630 | 100 | 1250 |
| Rated duty cycle(%) | 100% | ||
| Efficiency（η） | 0.85 | 0.85 | 0.85 |
| Power factor | 0.9 | 0.9 | 0.9 |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Cooling method | Fan cooling | Fan cooling | Fan cooling |
| Dimension LxWxH(mm) | 730X360X970 | 730X360X970 | 730X360X970 |
| Net weight(Kg) | 70.5 | 98 | 108 |
