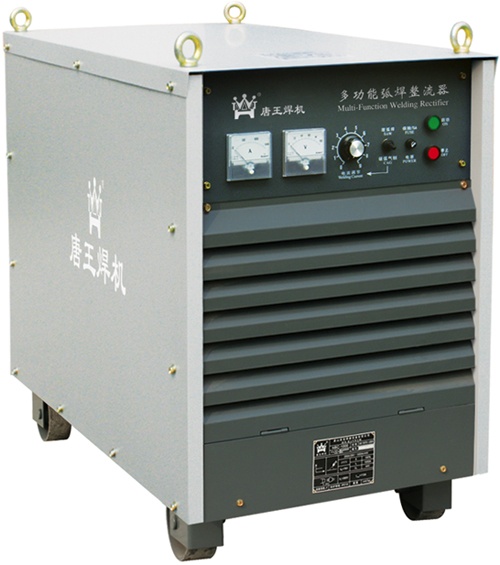

Carbon Arc Gouging Machine
|
|
product name: ZD5-1250
|
Equipment Features
■ Thyristor control technology, with simple circuit and convenient maintenance.
■ Gouging welding and various others welding processes thanks to multi-features output functionality.
■ Excellent grid compensation capacity and the current variation rate in 1% when voltage variation rate is
within ±10%.
■ With good dynamic characteristics and low-spatter welding.
■ Super-widely current adjustment range.
Area of Application
■ Suitable for all-round welding of carbon steel, alloy steel, tool steel etc.
ZD5-1250 Technical Data
| Model | ZD5-1250 |
| Input power source | Three phase 380V±10% 50Hz |
| Rated duty cycle (%) | 100 |
| Open circuit voltage (V) | 78 |
| Rated welding voltage (V) | 44 |
| Rated welding current (A) |
1250 |
| Current adjustment range (A) | 250-1250 |
| Rated input power (KVA) |
85.6 |
| Rated input current (A) |
130 |
| Efficiency | 0.85 |
| Power factor | 0.9 |
| Dimension L x W x H (mm) | 1075×700×970 |
| Net Weight (Kg) |
460 |
