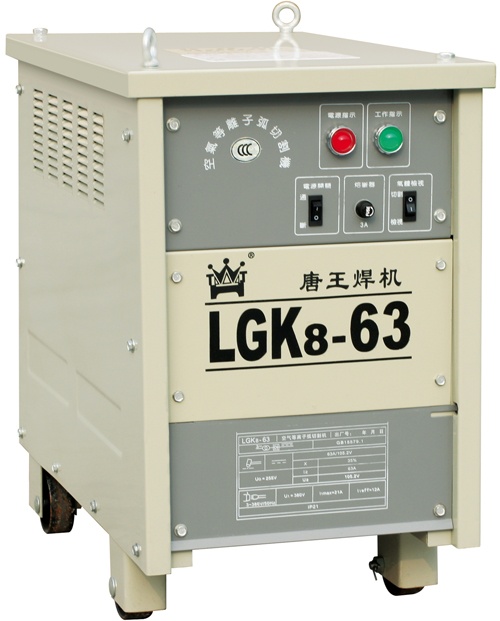

Air Plasma Cutting Machine

product name: LGK8-63

Equipment Features
■ Rapidly cutting, narrow and straight cutting lines.
■ Suitable for various conductive metal cutting.
■ No much effect for voltage fluctuation.



Area of Application
■ Suitable for the cutting of low-carbon steel, stainless
steel, aluminum and non-ferrous metals etc.


LGK8-63 Technical Data

Model LGK8-63
Input power supply Three phase 380V±10% 50Hz
Rated input power (KVA) 14
Rated input current (A) 21
Rated duty cycle (%) 60
Open circuit voltage (V) 255
Working voltage (V) 130
Cutting thickness range (mm) 2-20
Max. cutting thickness (mm) 25
Air pressure (Mpa) 0.5
Dimension L x W x H (mm) 665×375×650
Net weight (Kg) 90
